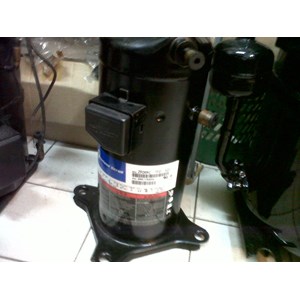

Compressor Copeland Type ZR32K3-TFD-522 (3Hp)
Hover to Zoom

Last Updated
03 Jan 2020
Minimum Order
1 unit

Specification of Compressor Copeland Type ZR32K3-TFD-522 (3Hp)

Performance



-Evap(°F)/Cond(°F)                         : 45/130     45/100

-RG(°F)/Liq(°F)                                  : 65/115     65/85

-Capacity (Btu/hr)                            : 30200       36000

-Power (Watts)                                 : 2700         1810

-Current (Amps)                               : 4.8            3.7

-EER (Btu/Wh)                                   : 11.2          19.9

-Mass Flow (lbs/hr)                         : 443.0       463.0

-Sound Power(dBA)                       : 68 Ave     73 Max

-Vibration (mils(peak-peak))      : 2.0 Ave   3.0 Max

-Record Date                                     : 2009-04-13



Mechanical



-Number of Cylinders                    : 0

-Bore Size (in)                                    : 0.0

-Stroke (in)                                         : 0.0

-Displ (in^3/Rev)                              : 3.02

-Displ (ft^3/hr)                                  : 304.0958

-Overall Length (in)                         : 9.567

-Overall Width (in)                           : 9.567

-Overall Height (in)                          : 15.729

-Mounting Length (in)                   : 7.5

-Mounting Width(in)                      : 7.5

-MouSuction Size (in)                     : 15.965*

-Suction Size (in)                              : 3/4 Stub

-Discharge Size (in)                          : 1/2 Stub

-Initial Oil Charge (oz)                     : 42

-Oil Recharge (oz                              : 38

-Net Weight (lbs)                             : 60.0

-Internal Free Volume (in^3)      : 188.0

- HorsePower                                    : 3.0

-Overall compressor height on Copeland Brand Product's specified

mounting grommets.

Electrical



-LRA-High*                                         : 40.0

-LRA-Half Winding                           :

-LRA-Low*                                          : 36.0

-RLA(=MCC/1.4; use for contactor selection)       : 5.7

-RLA (=MCC/1.56; use for breaker & wire size selection)                : 5.1

-MCC (Amps)                                     : 8.0

-RPM                                                     : 2900

-Max Operating Current                               : 6.0

-UL File No                                          : SA-2337

-UL File Date                                      : 14-Jun-1994

-CSA File No                                       : LR3104C

-*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.



Alternate Applications



-Refrigerant                                       : R-22 HCFC

-Frequency(Hz)                                                : 60

-Phase                                                  : 3

-Voltage                                               : 460

-Application                                        : Air Conditioning
