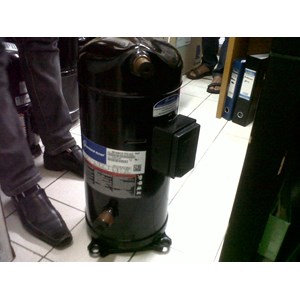

copeland scroll compressor type zr94kc-tfd-522 (7.5 Hp)
Hover to Zoom

Last Updated
08 Oct 2019
Minimum Order
1 unit

Specification of copeland scroll compressor type zr94kc-tfd-522 (7.5 Hp)

specification

Performance
-Evap (° F)/Cond (° F): 45/130 45/100
-RG (° F)/Liq (° F): 65/115 65/85
-Capacity (Btu/hr): 79500 94000
-Power (Watts): 6750 4780
-Current (Amps): 12.5 9.6
-EER (Btu/Wh): 11.8 19.7
-Mass Flow (lbs/hr): 1170.0 1210.0
-Sound Power (dBA): 73 Ave 78 Max
-Vibration (mils (peak-peak)): 2.5/4.0 Max Ave
-Record Date: 2006-02-13

Mechanical
-Number of Cylinders: 0
-Bore Size (in): 0.0
-Stroke (in): 0.0
-Stroke (in): 7.758
-Displ (ft ^ 3/hr): 781.1840

-Overall Length (in): at 10
-Overall Width (in): 11.23
-Overall Height (in): 18.75
-Mounting Length (in): 7.5
-Mounting Width (in): 7.5
-Mounting Height (in): 19.5 *

-Suction Size (in.): 1 1/8 Stub
-Discharge Size (in.): 7/8 Stub
-Initial Oil Charge (oz): 85
-Oil Recharge (oz): 81
-Net Weight (lbs): 126.0
-Internal Free Volume (in. ^ 3): 639.0
--HorsePower: 8.0

* Overall height on Copeland compressor Brand Product ' s specified
mounting grommets.

Electrical
-LRA-High *: 95.0
-LRA-Half Winding:
-LRA-Low *: 86.0
-RLA (= MCC/1.4; use for contactor selection): 16.4
-RLA (= MCC/1.56; use for breaker & wire size selection): 14.7
-MCC (Amps): 23.0
-RPM: 2900
-Max Operating Current: 15.6
-UL File No.: SA-2337
-UL File Date: 27-Sep-1996
-C.S.A. File No.: LR3104C
-Low and High * refer to the low and high nominal voltage ranges for which the motor is approved.

Alternate Applications
-Refrigerant: R-22 HCFC
-Frequency (Hz): 50/60
-Phase: 3
-Voltage: 380/440
-Application: Air Conditioning











Untuk keterangan lebih lanjut, silahkan download PDF ini :
